Multifunctional CNC bidirectional bending machine

Bending material :aluminum alloy, stainless steel, iron, copper, etc.

Advantage :

Both way bending, fine access material, accurate feeding, less spare material, no wrinkle bending, high yield,full automatic operation and improve the productivity effeiciency and save labor cost

Application :

Photo frame, mirror frame, decorative ceiling, lamps and lanterns, advertising, furniture, bags, freezers, automobiles, ships, crafts and other metal forming field

Bending shapes :

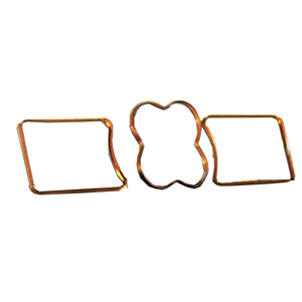

Both way bending, can do S shape, mountain, heart, pentagonal, square, runway circle, elliptic polygon, irregular shape, to the specific material section structure

Technical Parameter :

Transport speed: 0-50m/min

Equipment power: 4500W

Control system:special open manufacturer /PC+PCI sports card optional PLC

Bending shaft torque:1500N•M

Mold shaft length:60mm-180mm adjustable

Product R angle: minimum 50mm adjustable

Maximum forward Angle:178°

Maximum backward Angle: -178°

Input voltage: 220V

Input air pressure: 0.6-0.8Mpa

Equipment size:1750cm*800cm*1150cm

Equipment weight: 700KG
